Overview

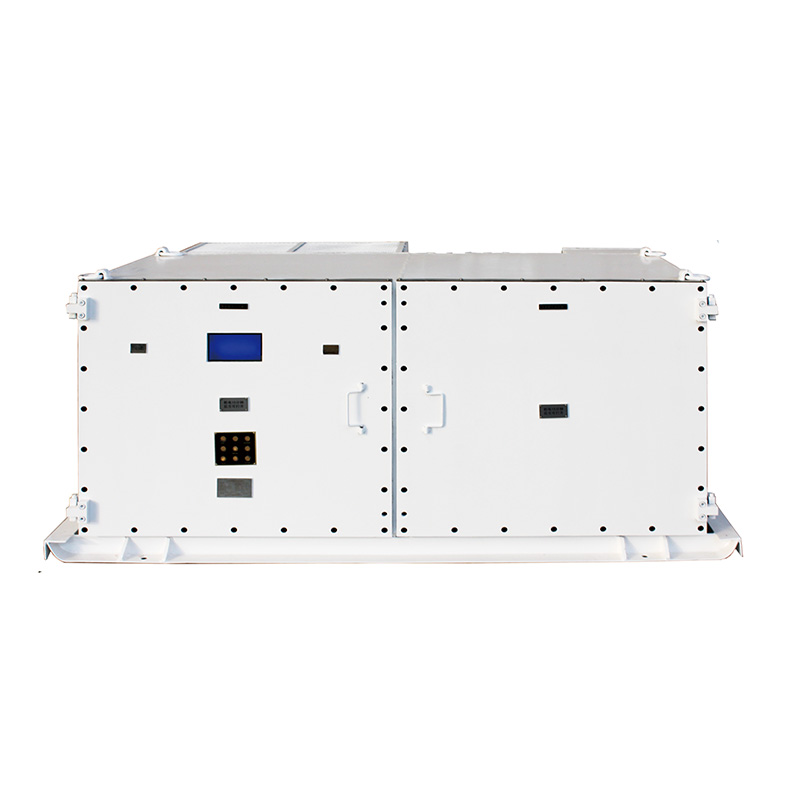

Explosion-proof and intrinsically safe inverter for mining use, covering two voltage levels of 660V and 1140V,
with a power range of 75kW~400kW.
The products cover two voltage levels of 660V and 1140V, power range of 75kW~400kW, with various control
modes such as IFD control, VTC [non-inductive vector control],
FOC [field oriented vector control], SYN [permanent magnet synchronous], etc., and support RGN
[energy regeneration control],
SYN [permanent magnet synchronization] and other control modes, supports RGN [energy regeneration
control], low-speed starting torque up to 240% of rated torque.
It supports RGN [energy regeneration control], and the low-speed starting torque is up to 240% of the rated
torque, which can satisfy the needs of loaded starting, stepless speed regulation, energy-saving operation
and so on.
Main technical parameters
| Rated Voltage | 660V series, 1140V series |
| Rated power | 75kW~400kW |
| Motor power | 400kW and below |
| Output frequency | 0~50Hz |
| Control mode | IFD control,VTC non-inductive vector control, FOC field orientation vector control, SYN permanent magnet synchronous control |
| Operation Mode | Vector control,SYN permanent magnet synchronous control |
| I/O interface | 8-channel DI, 4-channel DO, 3-channel Al, 3-channel AO |
| Communication mode | With CAN,RS485 communication mode Heat pipe air-cooled |
| Protection Function | Overload, short circuit, phase loss, three- phase imbalance, leakage, |
| Over-voltage, under-voltage and other protection functions | |
